ULN2803A

Description

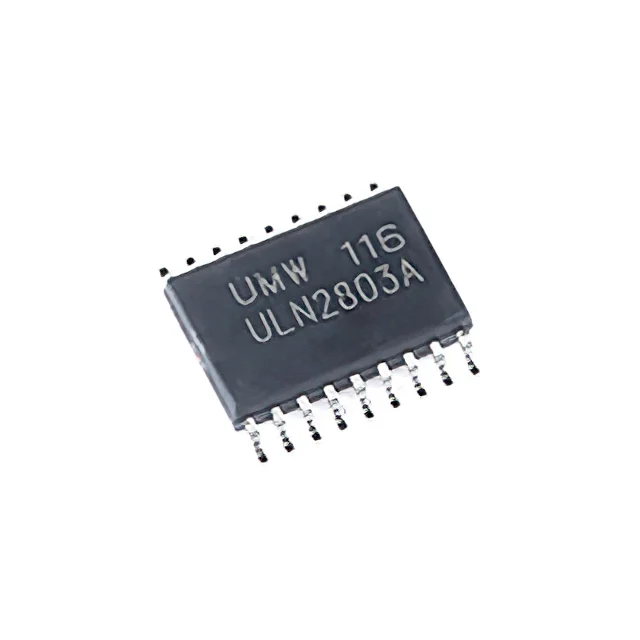

ULN2803 8-channel Darlington driver, SOP-18 — Toshiba.

The ULN2803 is high-voltage, high-current darlington driver IC composed of 8 NPN darlington pairs. All units share the emitter in common, and each unit adopts open-collector output. A 2.7KΩ resistor is connected to each darlington pair in serial, which is compatible with TTL and 5V CMOS for data processing without logic buffer. Sink current of ULN2803 is up to 500mA, when it is off state, the withstand voltage is 50V and the output can runs with high load current, which provides solutions for various interface. FEATURES Wideoperating voltage range 8-chhigh-gain darlington array Highoutput voltage (up to 50V) Highoutput current (up to 500mA) Abletoconnect to TTL, CMOS, PMOSdirectly Clampdiodes for switching inductive loads APPLICATIONS Relaydriver DClampdriver Stepmotor driver Magnetvalve DCbrushless motor driver ULN2803A DARLINGTON ARRAY DRIVER IC 18-SOP
