MT6835GT-STD-R ENCODER IC NOVOSENSE

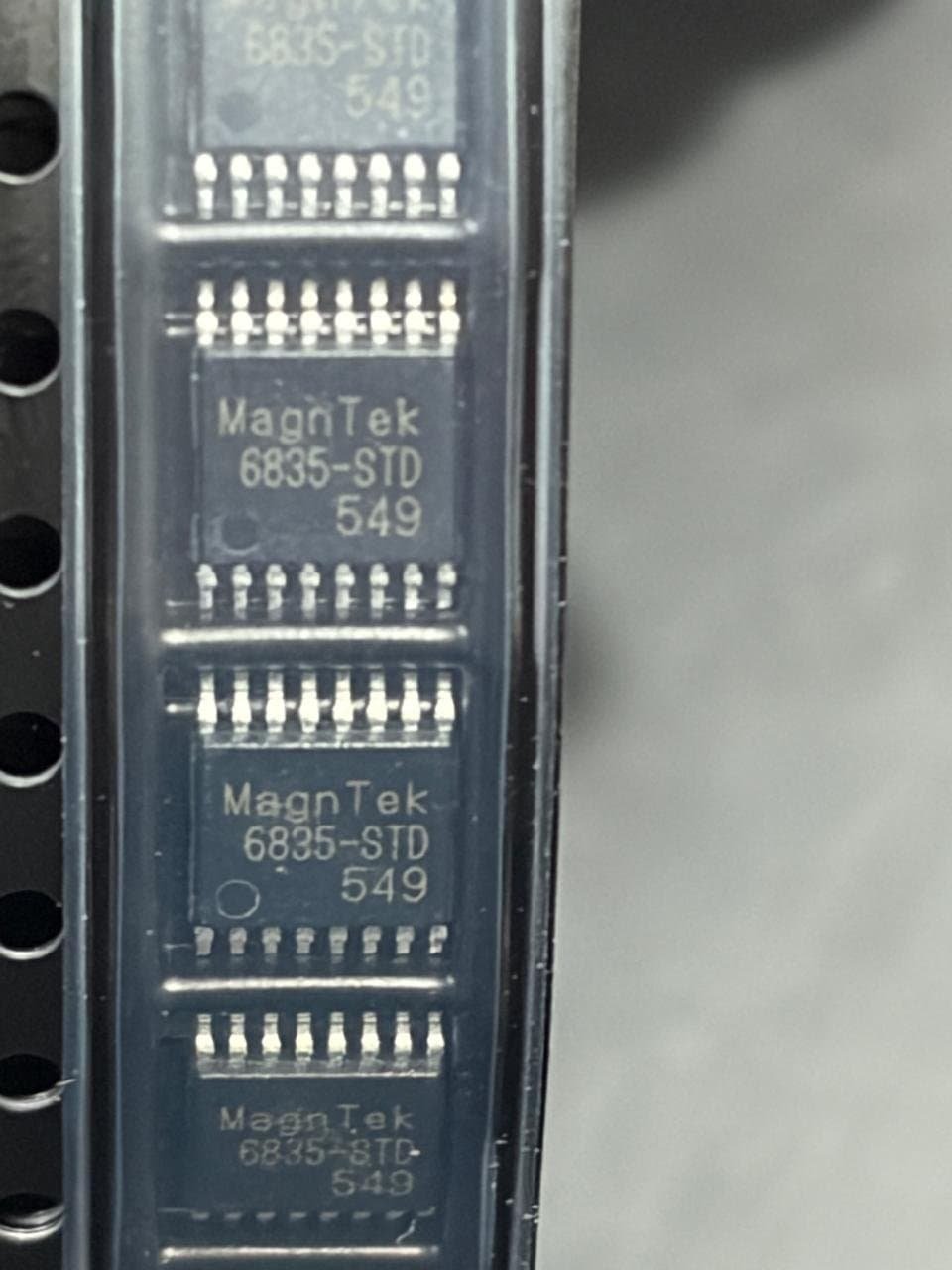

The MT6835GT-STD-R is the exact orderable part number for the high-performance 21-bit magnetic rotary angle encoder IC developed by MagnTek and distributed globally (including second-source packaging by companies like NOVOSENSE). The “-R” suffix indicates that the chip is supplied on a Tape & Reel carrier format designed specifically for automated pick-and-place surface-mount assembly machinery.

“Technical Specifications SummaryTechnology: Anisotropic Magnetoresistive (AMR) sensing.Resolution: 21-bit absolute resolution via SPI (down to 0.00017° per step).Speed Capabilities: Operates flawlessly up to 120,000 RPM with a tiny core latency of less than 10 μs.Electrical Interfaces: 4-wire SPI for absolute angle acquisition, alongside Incremental ABZ/UVW and PWM legacy outputs.Accuracy Profile: Integral Non-Linearity (INL) under ±0.07° post-calibration.Form Factor: 16-TSSOP surface mount package.

Part Number Suffix DecodingMT6835: Core chip architecture (21-bit high-speed magnetic encoder family).GT: TSSOP-16 package profile type.STD: Standard firmware/hardware variation profile.-R: Factory packaging option shipped on a Tape & Reel (typically consisting of several thousand units per reel for high-volume automated production).”
