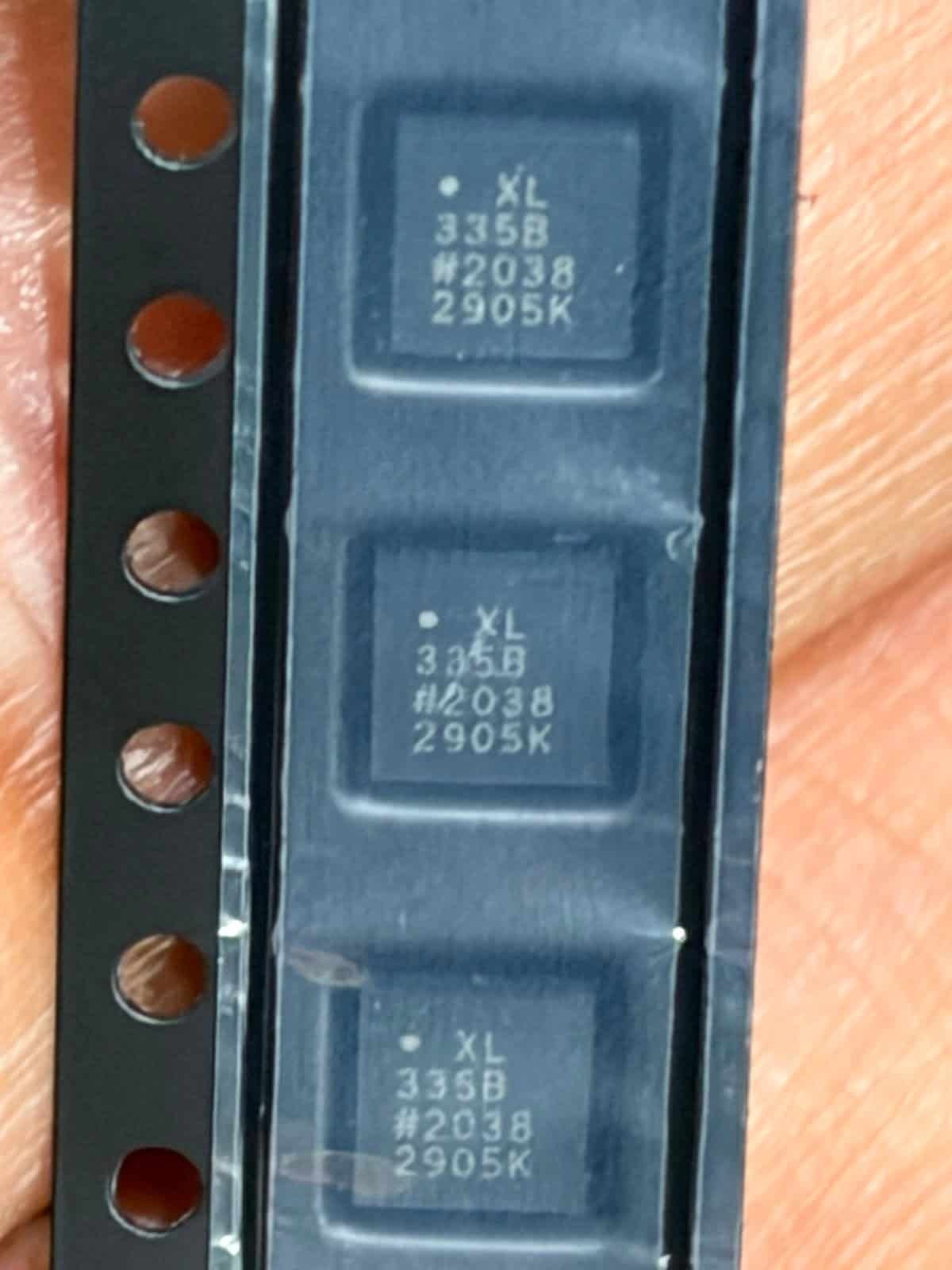

ADXL335BCPZ-RL7 ANALOG DEVICES IC

The ADXL335BCPZ-RL7 is a small, low-power, complete 3-axis MEMS accelerometer with signal-conditioned voltage outputs, manufactured by Analog Devices. It measures acceleration with a minimum full-scale range of ±3 g, making it a staple for tilt-sensing, motion tracking, and shock detection in mobile, sports, and industrial applications.

“Key Technical SpecificationsMeasurement Range: ±3 g (typical up to ±3.6 g).Output Type: Analog voltage (directly proportional to acceleration on X, Y, and Z axes).Sensitivity: 300 mV/g (typical at 3V supply voltage).Supply Voltage Range: 1.8 V to 3.6 V (3.0 V nominal).Ultra-Low Current Consumption: Low power draw of just 350 μA typical.Bandwidth Control: Adjustable via a single external capacitor per axis; maximum bandwidth of 1.6 kHz (X and Y axes) and 550 Hz (Z axis).Shock Survival: Extremely rugged, surviving up to 10,000 g of mechanical shock.Operating Temperature: Industrial grade, rated from -40°C to 85°C.Package Type: 16-pin LFCSP (Lead Frame Chip Scale Package), measuring 4 mm × 4 mm × 1.45 mm.

Part Number Suffix BreakdownADXL335: Core product architecture.B: Indicates the temperature performance grade (-40°C to 85°C).CP: Denotes the Lead Frame Chip Scale Package (LFCSP) form factor.Z: Signifies that the component is fully RoHS/WEEE lead-free compliant.-RL7: Specifies that the parts are packaged and shipped on a 7-inch Tape & Reel (typically containing 1,000 units per reel) for automated assembly lines.”
