L7905CD2T TO263 VOLTAGE REGULATOR IC ST

₹15.00

L7905CD2T TO263 VOLTAGE REGULATOR IC ST
PACKAGE – TO263
BRAND – ST
DATASHEET

Add to wishlist
Compare
Add to wishlist
Categories: , , Brand:
Description

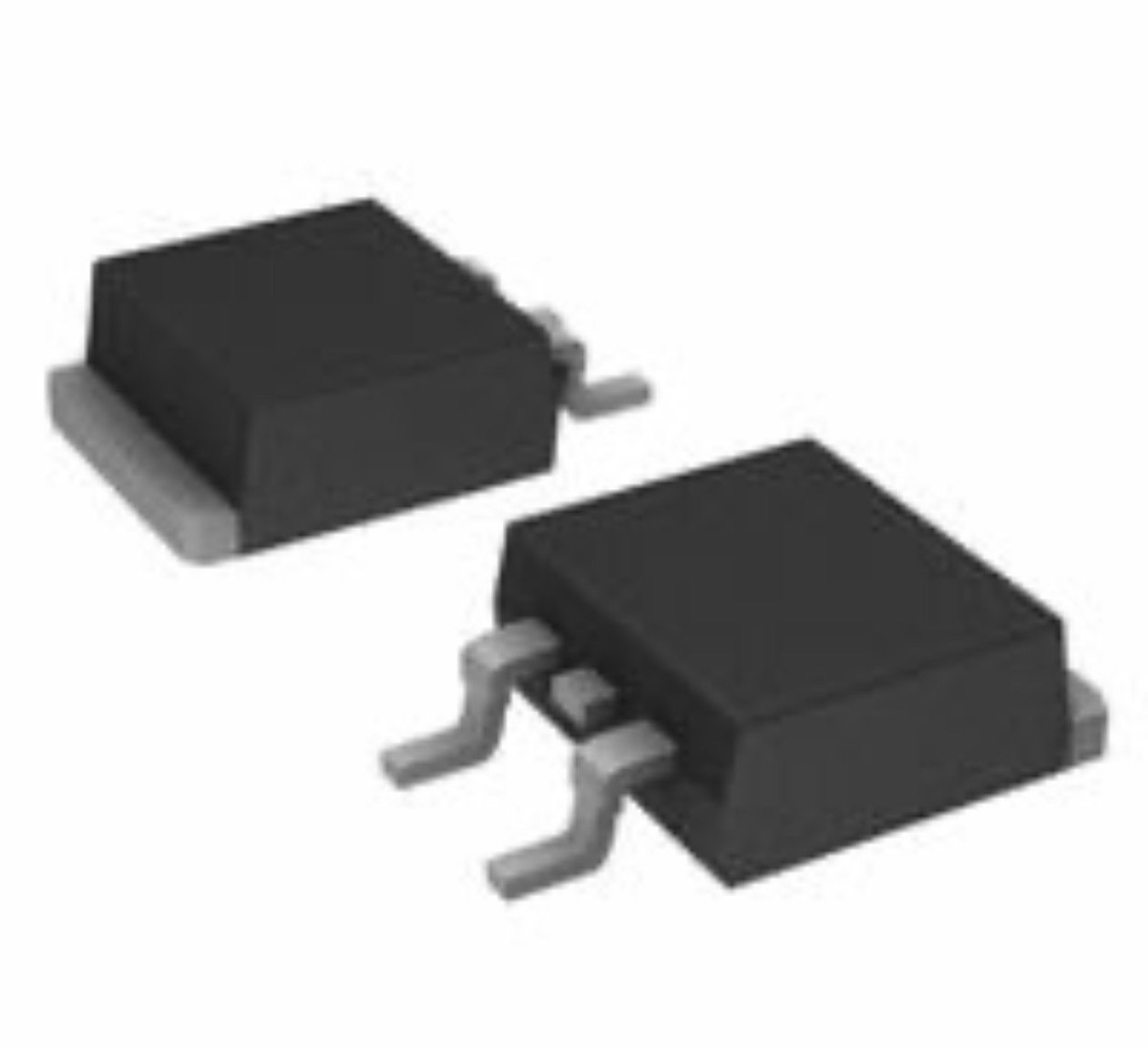

L7905CD2T TO263 VOLTAGE REGULATOR IC ST
The L7905CD2T is a three-terminal negative linear voltage regulator manufactured by ST . It delivers a fixed output of -5V with an output current capability of up to 1.5A when paired with adequate heat sinking.

  • Output Voltage: -5V (Fixed)
  • Output Current: Up to 1.5A
  • Input Voltage Range: -7V to -26V
  • Package Type: D²PAK / TO-263 (Surface Mount Device)
  • Dropout Voltage: 1.4V
  • Output Tolerance: 4% at 25 °C
  • Built-in Protection: Thermal overload protection, short-circuit protection, and Safe Operating Area (SOA) protection.
