Home INTEGRATED CIRCUITS ISL83202IBZT 55V, 1A Peak Current H-Bridge FET Driver
LDL1117S33R
LDL1117S33R ₹15.00
Back to products
STPS2045CT
STPS2045CT ₹20.00

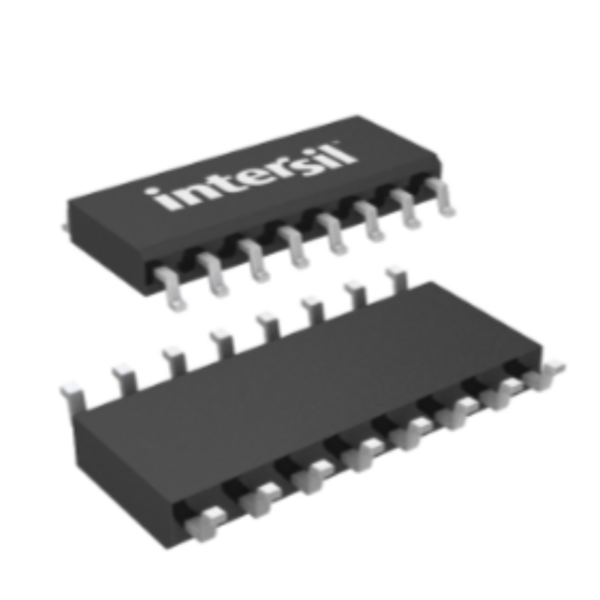

ISL83202IBZT 55V, 1A Peak Current H-Bridge FET Driver

₹150.00

Full-Bridge Gate Driver IC Non-Inverting 16-SOIC

BRAND – RENESAS

PACKAGE – SOIC 16

DATASHEET

1000 in stock

₹150.00
1 - 49 pieces
₹120.00 (20% off)
50 - 99 pieces
₹110.00 (26% off)
100+ pieces
Add to wishlist
Compare
Add to wishlist
SKU: ISL83202IBZ Category: INTEGRATED CIRCUITS
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

The ISL83202 is a medium-frequency H-Bridge FET driver capable of 1A (type) of peak drive current that is designed to uninterruptible power supply systems, the ISL83202 enables simple and flexible bridge-based design. With typical input to-output propagation delays as low as 25ns and with a user programmable dead-time range of 0.1µs to 4.5µs, the ISL83202 is ideal for switching frequencies up to 200kHz. The dead-time of the ISL83202 is programmable via a single resistor. The ISL83202’s four independent driver control inputs (ALI, AHI, BLI, and BHI) allow driving of every possible switch combination except those that would cause a shoot-through condition. A global disable input, DIS, overrides input control and causes the ISL83202 to refresh the bootstrap capacitor when pulled low. Integrated under voltage protection and shoot-through protection ensure  reliable system operation. The ISL83202 is available in compact 16 Ld SOIC and 16 Ld PDIP packages and operates over the range of -55°C to +125°C.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ISL83202IBZT 55V, 1A Peak Current H-Bridge FET Driver” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery
