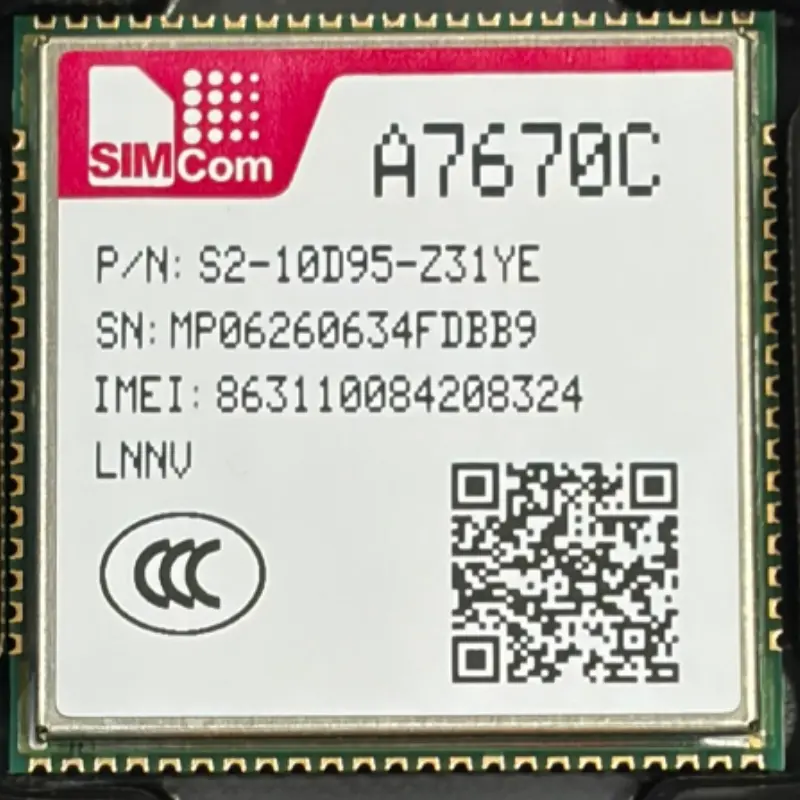

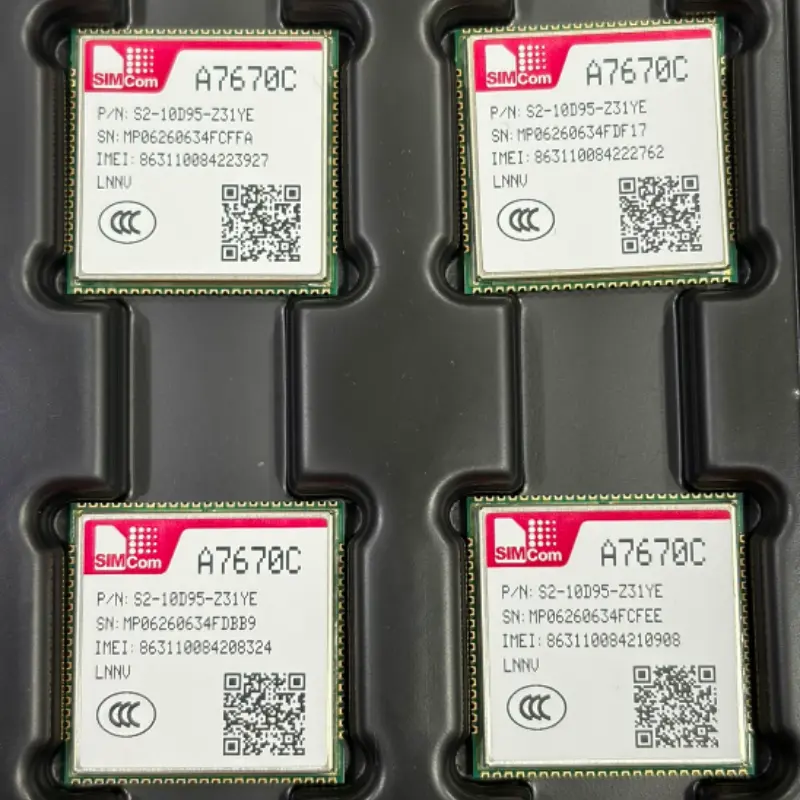

A7670C is the LTE Cat 1 module that supports LTE-FDD/GSM/GPRS/EDGE wireless communication modes. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate A7670C adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs. This product is known as 4G Module, 4G GPRS Module, 4G Chip Set, 4G LTE modem, 4G Module, GPRS Module, GPS Module, GSM Module, SIM7600, SIM7600EI, SIM7600EI 4G LTE, SIM A7670C 4G LTE Development Board.
Key features:
Compact size with abundant interfaces
Supports BLE and GNSS functions
Abundant software functions: FOTA, LBS, SSL
The form factor is compatible with the SIM7000/SIM7070 series
Feature/Specs:
Manufacturer: A7670C-LNNV
Manufacturer: Simcom Limited
Supply Voltage: 3.4 ~ 4.2VDC
Form Factor: LCC+LGA
Frequency Bands (A7672S)
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
Data Rates:
LTE (Mbps): 10 (DL)/5 (UL)
GPRS/EDGE (Kbps): 236.8 (DL)/236.8 (UL)
Firmware upgrade: USB/FOTA
SIM Card: 1.8/3.0 V
Operating temperature: -40 to 85°C
Length: 24 mm
Width: 24 mm
Height: 2.4 mm
Applications:
IoT applications
Telematics
Surveillance devices
M2M communication
Industrial routers
