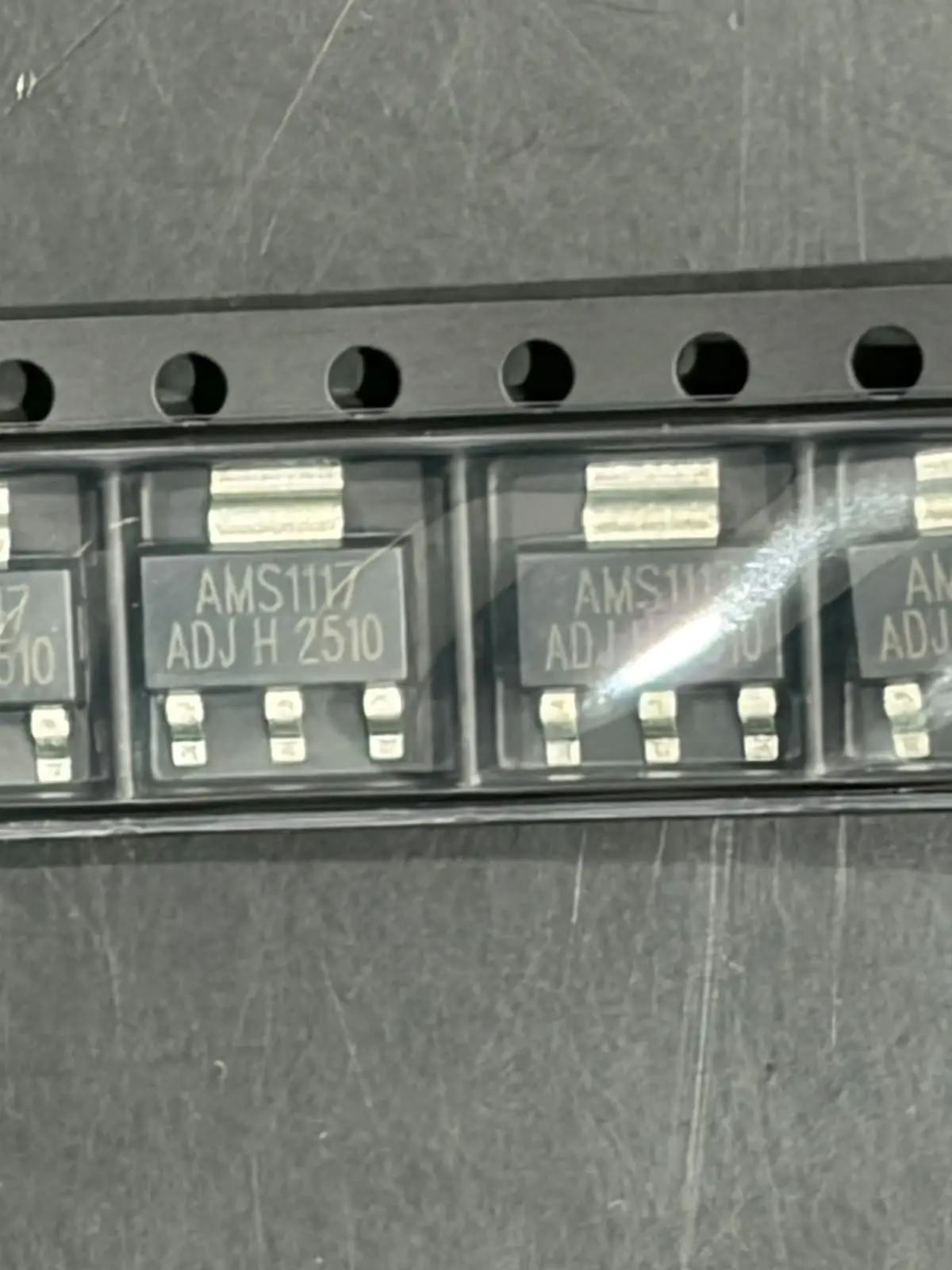

1117-ADJ SOT223 Low Dropout Voltage Regulator IC Hottech

The Hottech 1117-ADJ (manufactured by Guangdong Hottech Industrial Co., Ltd.) is a three-terminal adjustable low dropout (LDO) linear voltage regulator providing up to 1A of output current.
Key Specifications
Reference Voltage (\(V_{REF}\)): 1.250V typical (ranging between 1.238V and 1.262V at \(T_J = 25^\circ\text{C}\))
Maximum Output Current: 1A (for the 1117A-ADJ variant) or 800mA (for the standard 1117-ADJ variant)
Dropout Voltage: Maximum 1.15V to 1.25V at 1A output current
Maximum Input Voltage (\(V_{IN}\)): 15V
Operating Junction Temperature Range: -25°C to 125°C
Protection Features: Built-in thermal shutdown and trimmed current limiting
Package Type: SOT-223 surface mount
